User Guide
Here is some examples to use ppr
1# Import the libary into your script
2import pypbireport as ppr
Working with Power BI reports
1# Define the path for your report
2pbix_path = '../../example/Sample Report.pbix'
3
4# Instantiate a PBIReport object
5report = ppr.PBIReport(pbix_path=pbix_path)
6
7report
Sample Report: 3 pages and 15 visuals
Parse Power BI report layout JSON into a Python dictionary.
1# After reading a PBIX file, the layout information is stored in a Python dictionary
2foo = report.layout_pbi_dict
3
4print(f'Layout JSON in a dictionary: {type(foo)}')
5
6print(f'Number of keys and its names: {len(foo)}, {list(foo.keys())}')
Layout JSON in a dictionary: <class 'dict'>
Number of keys and its names: 6, ['id', 'theme', 'resourcePackages', 'sections', 'config', 'layoutOptimization']
1# For example, the key 'sections' holds the pages of the report
2# Get the number of pages
3print(len(foo.get('sections')))
4
5# Get the name of first page in report
6print(foo.get('sections')[0].get('displayName'))
3
Cover
Manipulating Visuals
Visuals in the report represented as a list of Visual objects
1# Visuals of the report
2report.visuals
[Visual( id: ba11b203b4ce6a5c7490 | page: Cover | hor,ver: (110,56) | h,w: (56, 318) | type: textbox ),
Visual( id: dfb0ef76dbaad8215b35 | page: Cover | hor,ver: (110,97) | h,w: (14, 357) | type: shape ),
Visual( id: 86673bea6b52652fd0e8 | page: Cover | hor,ver: (549,126) | h,w: (246, 180) | type: image ),
Visual( id: 1c510b92f9664aa06f71 | page: Sales Reseller | hor,ver: (308,184) | h,w: (336, 676) | type: lineStackedColumnComboChart ),
Visual( id: 74dc7d85aa39bf8a5880 | page: Sales Reseller | hor,ver: (92,82) | h,w: (48, 249) | type: textbox ),
Visual( id: 2ea41ed9ed62c60aab33 | page: Sales Reseller | hor,ver: (324,184) | h,w: (336, 614) | type: hundredPercentStackedColumnChart ),
BookmarkSlicer( id: 70ac771ab9b71818c964 | page: Sales Reseller | hor,ver: (308,135) | h,w: (29, 100) | type: bookmarkNavigator ),
Visual( id: 3656b63a1c5a1d5864fb | page: Sales Geography | hor,ver: (201,207) | h,w: (345, 414) | type: clusteredBarChart ),
Visual( id: b48b6690e2c83b1a4339 | page: Sales Geography | hor,ver: (31,17) | h,w: (48, 339) | type: textbox ),
Visual( id: a60fd9caebd151edd61b | page: Sales Geography | hor,ver: (201,207) | h,w: (358, 420) | type: clusteredBarChart ),
BookmarkSlicer( id: 07788b861426e801f4c7 | page: Sales Geography | hor,ver: (201,160) | h,w: (36, 220) | type: bookmarkNavigator ),
Visual( id: 2caadbd8b53008045d2d | page: Sales Geography | hor,ver: (711,106) | h,w: (201, 363) | type: funnel ),
Slicer( id: a6a4486f8508b0878304 | page: Sales Geography | hor,ver: (31,63) | h,w: (144, 121) | type: slicer ),
Column( id: 1aaebe320ae9e89ac467 | page: Sales Geography | hor,ver: (637,308) | h,w: (243, 571) | type: columnChart ),
Card( id: 1a35ebc8b0a047328cc4 | page: Sales Geography | hor,ver: (201,66) | h,w: (61, 147) | type: card )]
1# To facilitate page division, there is a dictionary containing a list of visuals for each page
2report.pages_visuals
{'Cover': [Visual( id: ba11b203b4ce6a5c7490 | page: Cover | hor,ver: (110,56) | h,w: (56, 318) | type: textbox ),
Visual( id: dfb0ef76dbaad8215b35 | page: Cover | hor,ver: (110,97) | h,w: (14, 357) | type: shape ),
Visual( id: 86673bea6b52652fd0e8 | page: Cover | hor,ver: (549,126) | h,w: (246, 180) | type: image )],
'Sales Reseller': [Visual( id: 1c510b92f9664aa06f71 | page: Sales Reseller | hor,ver: (308,184) | h,w: (336, 676) | type: lineStackedColumnComboChart ),
Visual( id: 74dc7d85aa39bf8a5880 | page: Sales Reseller | hor,ver: (92,82) | h,w: (48, 249) | type: textbox ),
Visual( id: 2ea41ed9ed62c60aab33 | page: Sales Reseller | hor,ver: (324,184) | h,w: (336, 614) | type: hundredPercentStackedColumnChart ),
BookmarkSlicer( id: 70ac771ab9b71818c964 | page: Sales Reseller | hor,ver: (308,135) | h,w: (29, 100) | type: bookmarkNavigator )],
'Sales Geography': [Visual( id: 3656b63a1c5a1d5864fb | page: Sales Geography | hor,ver: (201,207) | h,w: (345, 414) | type: clusteredBarChart ),
Visual( id: b48b6690e2c83b1a4339 | page: Sales Geography | hor,ver: (31,17) | h,w: (48, 339) | type: textbox ),
Visual( id: a60fd9caebd151edd61b | page: Sales Geography | hor,ver: (201,207) | h,w: (358, 420) | type: clusteredBarChart ),
BookmarkSlicer( id: 07788b861426e801f4c7 | page: Sales Geography | hor,ver: (201,160) | h,w: (36, 220) | type: bookmarkNavigator ),
Visual( id: 2caadbd8b53008045d2d | page: Sales Geography | hor,ver: (711,106) | h,w: (201, 363) | type: funnel ),
Slicer( id: a6a4486f8508b0878304 | page: Sales Geography | hor,ver: (31,63) | h,w: (144, 121) | type: slicer ),
Column( id: 1aaebe320ae9e89ac467 | page: Sales Geography | hor,ver: (637,308) | h,w: (243, 571) | type: columnChart ),
Card( id: 1a35ebc8b0a047328cc4 | page: Sales Geography | hor,ver: (201,66) | h,w: (61, 147) | type: card )]}
1# You can visualize a summary of visuals as a Pandas DataFrame
2report.resume_report_visuals()[['visualid', 'type', 'position', 'size']].head(3).iloc[:,:3]
| visualid | type | position | |
|---|---|---|---|
| pagename | |||
| Cover | ba11b203b4ce6a5c7490 | textbox | {'x': 110, 'y': 56} |
| Cover | dfb0ef76dbaad8215b35 | shape | {'x': 110, 'y': 97} |
| Cover | 86673bea6b52652fd0e8 | image | {'x': 549, 'y': 126} |
Modifying Visuals properties
1# Visual objects have attributes that can be modified
2
3# An example
4visual = report.visuals[9]
5print(f'Type of visual: {visual.visual_type}')
6# Get information from visual
7print(f'Vertical position: {visual.vertical}')
8# Modify the vertical positon of visual and check
9print(f'\nChange vertical position')
10visual.vertical = 150
11print(f'New vertical position: {visual.vertical}')
Type of visual: clusteredBarChart
Vertical position: 207.2164948453608
Change vertical position
New vertical position: 150
Modifying Visuals properties through the Visual dictionary
1# The 'visual' attribute of Visual objects contains the dictionary that is
2# rendered in Power BI. So, all modifications can be made directly in it.
3
4visual = report.visuals['b48b6690e2c83b1a4339'] #use id for slicing
5visual.visual
{'x': 31.546391752577318,
'y': 17.31958762886598,
'z': 1000,
'width': 339.58762886597935,
'height': 48.865979381443296,
'config': {'name': 'b48b6690e2c83b1a4339',
'layouts': [{'id': 0,
'position': {'x': 31.546391752577318,
'y': 17.31958762886598,
'z': 1000,
'width': 339.58762886597935,
'height': 48.865979381443296,
'tabOrder': 1000}}],
'singleVisual': {'visualType': 'textbox',
'drillFilterOtherVisuals': True,
'objects': {'general': [{'properties': {'paragraphs': [{'textRuns': [{'value': 'Reseller Sales Geography Analysis',
'textStyle': {'fontWeight': 'bold', 'fontSize': '16pt'}}]}]}}]}}},
'filters': [],
'tabOrder': 1000,
'query': {},
'dataTransforms': {}}
1# For example, let's change the font size of a text box
2
3# Get the value from the visual dictionary and set a new value for it
4font_size = (
5 visual.visual['config']['singleVisual']['objects']['general'][0]
6 ['properties']['paragraphs'][0]['textRuns'][0]['textStyle']['fontSize']
7)
8print(f'Value of font size: {font_size}')
9
10# Set a new value through the dictionary
11(
12 visual.visual['config']['singleVisual']['objects']['general'][0]
13 ['properties']['paragraphs'][0]['textRuns'][0]['textStyle']['fontSize']
14) = '20pt'
15
16# Confirming the new value
17font_size = (
18 visual.visual['config']['singleVisual']['objects']['general'][0]
19 ['properties']['paragraphs'][0]['textRuns'][0]['textStyle']['fontSize']
20)
21print(f'New value: {font_size}')
Value of font size: 16pt
New value: 20pt
1# The above modification can also be achieved using the 'update' method
2(
3 visual.visual['config']['singleVisual']['objects']['general'][0]
4 ['properties']['paragraphs'][0]['textRuns'][0]['textStyle']
5 .update({'fontSize':'20pt'})
6)
Adding a Visual to the report
For adding a new visual to the report, we have two options: either retrieve an existing one or create a new one from a template
Retrieve an existing visual and create a copy
1# First, get an existing visual. Let's work with one specific page this time
2
3sg_visuals = report.pages_visuals['Sales Geography'] #using page_visuals
4sg_visuals
[Visual( id: 3656b63a1c5a1d5864fb | page: Sales Geography | hor,ver: (201,207) | h,w: (345, 414) | type: clusteredBarChart ),
Visual( id: b48b6690e2c83b1a4339 | page: Sales Geography | hor,ver: (31,17) | h,w: (48, 339) | type: textbox ),
Visual( id: a60fd9caebd151edd61b | page: Sales Geography | hor,ver: (201,150) | h,w: (358, 420) | type: clusteredBarChart ),
BookmarkSlicer( id: 07788b861426e801f4c7 | page: Sales Geography | hor,ver: (201,160) | h,w: (36, 220) | type: bookmarkNavigator ),
Visual( id: 2caadbd8b53008045d2d | page: Sales Geography | hor,ver: (711,106) | h,w: (201, 363) | type: funnel ),
Slicer( id: a6a4486f8508b0878304 | page: Sales Geography | hor,ver: (31,63) | h,w: (144, 121) | type: slicer ),
Column( id: 1aaebe320ae9e89ac467 | page: Sales Geography | hor,ver: (637,308) | h,w: (243, 571) | type: columnChart ),
Card( id: 1a35ebc8b0a047328cc4 | page: Sales Geography | hor,ver: (201,66) | h,w: (61, 147) | type: card )]
1# Get a column chart from the page
2visual_column = sg_visuals['1aaebe320ae9e89ac467']
3
4# See some properties
5print(f'The hexadecimal id: {visual_column.id}')
6print(f'The height: {visual_column.height}')
7print(f'The measure in y field: {visual_column.y}')
8print(f'The horizontal position: {visual_column.horizontal}')
The hexadecimal id: 1aaebe320ae9e89ac467
The height: 243.71134020618555
The measure in y field: Metrics.Sales
The horizontal position: 637.1134020618557
To create a copy of visual, use the function copy_visual
1visual_column_copy = ppr.copy_visual(visual_column)
2
3visual_column_copy
Column( id: 906fd8155f34f3c14afb | page: | hor,ver: (637,308) | h,w: (243, 571) | type: columnChart )
1# Modfify some properties
2visual_column_copy.height = 200
3visual_column_copy.horizontal = 200
4visual_column_copy.vertical = 100
5
6print(f'The hexadecimal id: {visual_column_copy.id}') #this will be different
7print(f'The height: {visual_column_copy.height}')
8print(f'The measure in y field: {visual_column_copy.y}')
9print(f'The horizontal position: {visual_column_copy.horizontal}')
The hexadecimal id: 906fd8155f34f3c14afb
The height: 200
The measure in y field: Metrics.Sales
The horizontal position: 200
The copied visual doesn’t have an allocated page
You should now use the report’s insert_visual_in_page(page_name, visual) method to add the visual.
1# Using the function `insert_visual_in_page` to add the visual
2report.insert_visual_in_page(page_name='Sales Geography', visual=visual_column_copy)
1# Checking visual in page
2report.pages_visuals['Sales Geography']
[Visual( id: 3656b63a1c5a1d5864fb | page: Sales Geography | hor,ver: (201,207) | h,w: (345, 414) | type: clusteredBarChart ),
Visual( id: b48b6690e2c83b1a4339 | page: Sales Geography | hor,ver: (31,17) | h,w: (48, 339) | type: textbox ),
Visual( id: a60fd9caebd151edd61b | page: Sales Geography | hor,ver: (201,150) | h,w: (358, 420) | type: clusteredBarChart ),
BookmarkSlicer( id: 07788b861426e801f4c7 | page: Sales Geography | hor,ver: (201,160) | h,w: (36, 220) | type: bookmarkNavigator ),
Visual( id: 2caadbd8b53008045d2d | page: Sales Geography | hor,ver: (711,106) | h,w: (201, 363) | type: funnel ),
Slicer( id: a6a4486f8508b0878304 | page: Sales Geography | hor,ver: (31,63) | h,w: (144, 121) | type: slicer ),
Column( id: 1aaebe320ae9e89ac467 | page: Sales Geography | hor,ver: (637,308) | h,w: (243, 571) | type: columnChart ),
Card( id: 1a35ebc8b0a047328cc4 | page: Sales Geography | hor,ver: (201,66) | h,w: (61, 147) | type: card ),
Column( id: 906fd8155f34f3c14afb | page: Sales Geography | hor,ver: (200,100) | h,w: (200, 571) | type: columnChart )]
The last one is the copy of column chart
Create a new visual from a template
Use the fucntion create_new_visual(visual: ['card', 'column', 'slicer_drop', 'slicer_list', 'bookmark_slicer'], page_name, page_id)
The ppr provides five visual templates (‘card’, ‘column’, ‘slicer_drop’, ‘slicer_list’, ‘bookmark_slicer’).
There are simple preset visual dictionaries placed inside the package to ease visual creation.
Additionally, copying a created visual may be more suitable.
1# Different from the previous copy, where a copy is made without a page, for a new visual
2# you should determine its location.
3# To get the page_id, use the report function resume_report_pages()
4report.resume_report_pages()
{0: ['Cover', 'ReportSection'],
1: ['Sales Reseller', 'ReportSectione5a5d9f92de0fef7e45e'],
2: ['Sales Geography', 'ReportSectionbe016ac3584b5b3bef65']}
1# Let's crate a card visual in Sales Geography
2card = ppr.create_new_visual(visual='card',
3 page_name='Sales Geography',
4 page_id='ReportSectionbe016ac3584b5b3bef65')
5
6card
Card( id: 47c4cb7acaf3f4f61c2e | page: Sales Geography | hor,ver: (164,233) | h,w: (68, 172) | type: card )
Important: the fact that a created visual has an assigned page doesn’t mean that it is inserted into the report.
1# Again, you are free to modify and costumize the visual before insertion
2# into the report.
3card.title_text = "PPR Card created"
4card.height = 10
5card.horizontal = 100
6card.field = 'Metrics.Sales'
7
8report.insert_visual_in_page(page_name='Sales Geography', visual=card)
1# Check if visual was added
2report.pages_visuals['Sales Geography']
[Visual( id: 3656b63a1c5a1d5864fb | page: Sales Geography | hor,ver: (201,207) | h,w: (345, 414) | type: clusteredBarChart ),
Visual( id: b48b6690e2c83b1a4339 | page: Sales Geography | hor,ver: (31,17) | h,w: (48, 339) | type: textbox ),
Visual( id: a60fd9caebd151edd61b | page: Sales Geography | hor,ver: (201,150) | h,w: (358, 420) | type: clusteredBarChart ),
BookmarkSlicer( id: 07788b861426e801f4c7 | page: Sales Geography | hor,ver: (201,160) | h,w: (36, 220) | type: bookmarkNavigator ),
Visual( id: 2caadbd8b53008045d2d | page: Sales Geography | hor,ver: (711,106) | h,w: (201, 363) | type: funnel ),
Slicer( id: a6a4486f8508b0878304 | page: Sales Geography | hor,ver: (31,63) | h,w: (144, 121) | type: slicer ),
Column( id: 1aaebe320ae9e89ac467 | page: Sales Geography | hor,ver: (637,308) | h,w: (243, 571) | type: columnChart ),
Card( id: 1a35ebc8b0a047328cc4 | page: Sales Geography | hor,ver: (201,66) | h,w: (61, 147) | type: card ),
Column( id: 906fd8155f34f3c14afb | page: Sales Geography | hor,ver: (200,100) | h,w: (200, 571) | type: columnChart ),
Card( id: 47c4cb7acaf3f4f61c2e | page: Sales Geography | hor,ver: (100,233) | h,w: (10, 172) | type: card )]
Creating Bookmarks
Bookmark information
1# Resume bookmarks in the report
2report.bookmarks
[Bookmark( id: 'Bookmark0ed6bff31aa9b8bd1871' | name: City | page: Sales Geography | show: ['3656b63a1c5a1d5864fb', 'b48b6690e2c83b1a4339', '07788b861426e801f4c7'] | hide: ['a60fd9caebd151edd61b'] ),
Bookmark( id: 'Bookmark84f5abdb65c08d899418' | name: Country | page: Sales Geography | show: ['b48b6690e2c83b1a4339', 'a60fd9caebd151edd61b', '07788b861426e801f4c7'] | hide: ['3656b63a1c5a1d5864fb'] ),
Bookmark( id: 'Bookmark5fa4a86292cd8509f1a7' | name: V | page: Sales Reseller | show: ['1c510b92f9664aa06f71', '74dc7d85aa39bf8a5880'] | hide: ['2ea41ed9ed62c60aab33'] ),
Bookmark( id: 'Bookmark549dfb51b281266458c9' | name: P | page: Sales Reseller | show: ['74dc7d85aa39bf8a5880', '2ea41ed9ed62c60aab33'] | hide: ['1c510b92f9664aa06f71'] ),
Bookmark( id: 'Bookmarkbeef068b5ca61ec2a331' | name: Botao Solto | page: Sales Geography | show: ['07788b861426e801f4c7'] | hide: ['3656b63a1c5a1d5864fb', 'b48b6690e2c83b1a4339', 'a60fd9caebd151edd61b'] )]
1# Resume bookmarks groups in the report
2report.bookmark_groups
[BookmarkGroup( id: 'Bookmark3a33e033c4557e665f3b' | name: City or Country | page: Sales Geography | bookmarks_id: ['Bookmark0ed6bff31aa9b8bd1871', 'Bookmark84f5abdb65c08d899418'] | bookmarks_name: ['City', 'Country'] | visuals: ['3656b63a1c5a1d5864fb', 'b48b6690e2c83b1a4339', '07788b861426e801f4c7', 'a60fd9caebd151edd61b', 'b48b6690e2c83b1a4339', 'a60fd9caebd151edd61b', '07788b861426e801f4c7', '3656b63a1c5a1d5864fb'] ),
BookmarkGroup( id: 'Bookmark788448a1069d01cbd063' | name: V, P | page: Sales Reseller | bookmarks_id: ['Bookmark5fa4a86292cd8509f1a7', 'Bookmark549dfb51b281266458c9'] | bookmarks_name: ['V', 'P'] | visuals: ['1c510b92f9664aa06f71', '74dc7d85aa39bf8a5880', '2ea41ed9ed62c60aab33', '74dc7d85aa39bf8a5880', '2ea41ed9ed62c60aab33', '1c510b92f9664aa06f71'] )]
1# The bookmarks don't have a specific page.
2# Get a bookmark
3book = report.bookmarks[0]
4
5print(f'The bookmark id: {book.id}')
6print(f'Name: {book.name}')
7print(f'The to show visuals list: {book.show_visuals}')
8print(f'The hide one: {book.hide_visuals}')
The bookmark id: Bookmark0ed6bff31aa9b8bd1871
Name: City
The to show visuals list: [Visual( id: 3656b63a1c5a1d5864fb | page: Sales Geography | hor,ver: (201,207) | h,w: (345, 414) | type: clusteredBarChart ), Visual( id: b48b6690e2c83b1a4339 | page: Sales Geography | hor,ver: (31,17) | h,w: (48, 339) | type: textbox ), BookmarkSlicer( id: 07788b861426e801f4c7 | page: Sales Geography | hor,ver: (201,160) | h,w: (36, 220) | type: bookmarkNavigator )]
The hide one: [Visual( id: a60fd9caebd151edd61b | page: Sales Geography | hor,ver: (201,150) | h,w: (358, 420) | type: clusteredBarChart )]
1# Bookmark groups are collection of bookmarks
2book_group = report.bookmark_groups[0]
3
4print(f'The bookmark id: {book_group.id}')
5print(f'The name: {book_group.bookmark_group_name}')
6print(f'The bookmarks: {book_group.children_list}')
The bookmark id: Bookmark3a33e033c4557e665f3b
The name: City or Country
The bookmarks: [Bookmark( id: 'Bookmark0ed6bff31aa9b8bd1871' | name: City | page: Sales Geography | show: ['3656b63a1c5a1d5864fb', 'b48b6690e2c83b1a4339', '07788b861426e801f4c7'] | hide: ['a60fd9caebd151edd61b'] ), Bookmark( id: 'Bookmark84f5abdb65c08d899418' | name: Country | page: Sales Geography | show: ['b48b6690e2c83b1a4339', 'a60fd9caebd151edd61b', '07788b861426e801f4c7'] | hide: ['3656b63a1c5a1d5864fb'] )]
Important to note: the development for bookmarks was focused in “buttons” to show and hide visuals in the report.
To be more specific, the intention is to work with preconfigured bookmarks of the following kind:
It is not guaranteed that the package works fine with other bookmarks.
This is because there are attributes for show_visuals and hide_visuals. Nothing was designed for “show page,” for example.
Create a bookmark using Bookmark object
1# Remember that the bookmark is for "buttons," so, first, we need visuals to show
2# and to hide
3
4to_show = (
5 report.pages_visuals['Sales Geography']
6 [['3656b63a1c5a1d5864fb', '2caadbd8b53008045d2d']] #pass a list of id of visuals
7)
8
9to_hide = (
10 report.pages_visuals['Sales Geography']
11 [['a60fd9caebd151edd61b', '1aaebe320ae9e89ac467']] #pass a list of id of visuals
12)
13
14print(f'List of visual to show: {to_show}')
15print(f'List of visual to hide: {to_hide}')
List of visual to show: [Visual( id: 3656b63a1c5a1d5864fb | page: Sales Geography | hor,ver: (201,207) | h,w: (345, 414) | type: clusteredBarChart ), Visual( id: 2caadbd8b53008045d2d | page: Sales Geography | hor,ver: (711,106) | h,w: (201, 363) | type: funnel )]
List of visual to hide: [Visual( id: a60fd9caebd151edd61b | page: Sales Geography | hor,ver: (201,150) | h,w: (358, 420) | type: clusteredBarChart ), Column( id: 1aaebe320ae9e89ac467 | page: Sales Geography | hor,ver: (637,308) | h,w: (243, 571) | type: columnChart )]
1# After getting the list of visuals, pass it as an argument of a Bookmark
2button_a = ppr.Bookmark(bookmark_name='Button A',
3 show_visuals=to_show,
4 hide_visuals=to_hide)
5
6button_a
Bookmark( id: 'Bookmark425d97604c548aacadd8' | name: Button A | page: Sales Geography | show: ['3656b63a1c5a1d5864fb', '2caadbd8b53008045d2d'] | hide: ['a60fd9caebd151edd61b', '1aaebe320ae9e89ac467'] )
Insert the bookmark using insert_bookmark(ppr_bookmark)
1# This is an example of a bookmark that shows the bar chart and funnel and hides
2# the other bar chart and the column chart.
3
4report.insert_bookmark(ppr_bookmark=button_a)
1# Check if it was added
2report.bookmarks
[Bookmark( id: 'Bookmark0ed6bff31aa9b8bd1871' | name: City | page: Sales Geography | show: ['3656b63a1c5a1d5864fb', 'b48b6690e2c83b1a4339', '07788b861426e801f4c7'] | hide: ['a60fd9caebd151edd61b'] ),
Bookmark( id: 'Bookmark84f5abdb65c08d899418' | name: Country | page: Sales Geography | show: ['b48b6690e2c83b1a4339', 'a60fd9caebd151edd61b', '07788b861426e801f4c7'] | hide: ['3656b63a1c5a1d5864fb'] ),
Bookmark( id: 'Bookmark5fa4a86292cd8509f1a7' | name: V | page: Sales Reseller | show: ['1c510b92f9664aa06f71', '74dc7d85aa39bf8a5880'] | hide: ['2ea41ed9ed62c60aab33'] ),
Bookmark( id: 'Bookmark549dfb51b281266458c9' | name: P | page: Sales Reseller | show: ['74dc7d85aa39bf8a5880', '2ea41ed9ed62c60aab33'] | hide: ['1c510b92f9664aa06f71'] ),
Bookmark( id: 'Bookmarkbeef068b5ca61ec2a331' | name: Botao Solto | page: Sales Geography | show: ['07788b861426e801f4c7'] | hide: ['3656b63a1c5a1d5864fb', 'b48b6690e2c83b1a4339', 'a60fd9caebd151edd61b'] ),
Bookmark( id: 'Bookmark425d97604c548aacadd8' | name: Button A | page: Sales Geography | show: ['3656b63a1c5a1d5864fb', '2caadbd8b53008045d2d'] | hide: ['a60fd9caebd151edd61b', '1aaebe320ae9e89ac467'] )]
1# It was just one button. If we desire to create the oposite behaivor
2button_b = ppr.Bookmark(bookmark_name='Button B',
3 show_visuals=to_hide, #just change the argument postion
4 hide_visuals=to_show)
5
6button_b
Bookmark( id: 'Bookmarkffa29498e245e246f334' | name: Button B | page: Sales Geography | show: ['a60fd9caebd151edd61b', '1aaebe320ae9e89ac467'] | hide: ['3656b63a1c5a1d5864fb', '2caadbd8b53008045d2d'] )
Create a bookmark groups using BookmarkGroup object
1# With two bookmarks, we can create a bookmark group
2
3book_group = ppr.BookmarkGroup(bookmark_group_name='Buttons A and B',
4 children_list=[button_a, button_b])
5
6book_group
BookmarkGroup( id: 'Bookmarkfcde09353f8b93ade6a0' | name: Buttons A and B | page: Sales Geography | bookmarks_id: ['Bookmark425d97604c548aacadd8', 'Bookmarkffa29498e245e246f334'] | bookmarks_name: ['Button A', 'Button B'] | visuals: ['3656b63a1c5a1d5864fb', '2caadbd8b53008045d2d', 'a60fd9caebd151edd61b', '1aaebe320ae9e89ac467', 'a60fd9caebd151edd61b', '1aaebe320ae9e89ac467', '3656b63a1c5a1d5864fb', '2caadbd8b53008045d2d'] )
1# Bookmarks groups are inserted as bookmarks
2report.insert_bookmark(book_group)
1report.bookmark_groups
[BookmarkGroup( id: 'Bookmark3a33e033c4557e665f3b' | name: City or Country | page: Sales Geography | bookmarks_id: ['Bookmark0ed6bff31aa9b8bd1871', 'Bookmark84f5abdb65c08d899418'] | bookmarks_name: ['City', 'Country'] | visuals: ['3656b63a1c5a1d5864fb', 'b48b6690e2c83b1a4339', '07788b861426e801f4c7', 'a60fd9caebd151edd61b', 'b48b6690e2c83b1a4339', 'a60fd9caebd151edd61b', '07788b861426e801f4c7', '3656b63a1c5a1d5864fb'] ),
BookmarkGroup( id: 'Bookmark788448a1069d01cbd063' | name: V, P | page: Sales Reseller | bookmarks_id: ['Bookmark5fa4a86292cd8509f1a7', 'Bookmark549dfb51b281266458c9'] | bookmarks_name: ['V', 'P'] | visuals: ['1c510b92f9664aa06f71', '74dc7d85aa39bf8a5880', '2ea41ed9ed62c60aab33', '74dc7d85aa39bf8a5880', '2ea41ed9ed62c60aab33', '1c510b92f9664aa06f71'] ),
BookmarkGroup( id: 'Bookmarkfcde09353f8b93ade6a0' | name: Buttons A and B | page: Sales Geography | bookmarks_id: ['Bookmark425d97604c548aacadd8', 'Bookmarkffa29498e245e246f334'] | bookmarks_name: ['Button A', 'Button B'] | visuals: ['3656b63a1c5a1d5864fb', '2caadbd8b53008045d2d', 'a60fd9caebd151edd61b', '1aaebe320ae9e89ac467', 'a60fd9caebd151edd61b', '1aaebe320ae9e89ac467', '3656b63a1c5a1d5864fb', '2caadbd8b53008045d2d'] )]
Save changes as a new report
Utilize the save_report function from the report to save the modifications and consolidate the changes into a new file
1report.save_report(file_name='../../example/Sample Report Edited.pbix')
Working with Power BI model
The Power BI model only exists when the file is opened. Therefore, all the code here assumes that a Power BI file is open.
1# Use PBIModel to define the model objects
2model = ppr.PBIModel('Sample Report.pbix') #the arg is the path of pbix file
Model information
1# Get some information from model
2
3print(f'The port of report is: {model.port_number}')
4print(f'Tables of the model: {model.tables}')
5print(f'Tabular model object: {model.model}')
The port of report is: 62731
Tables of the model: ['SalesTerritory', 'SalesOrder', 'Sales', 'Reseller', 'Product', 'Date', 'Customer', 'Metrics']
Tabular model object: Microsoft.AnalysisServices.Tabular.Model
When initiated, all tables in the model are scanned along with their columns and measures, and they are turned into attributes.
Table attributes initiate with t_, columns with c_, and measures with m_.
It’s important to be aware that the names of attributes may be quite different from fields names due to character restrictions.
1# Explorer tables, columns and measures attributes
2print(f'Metrics table: {model.t_metrics}')
3print(f'Sales metric: {model.t_metrics.m_sales}')
4
5print(f'Costumer table: {model.t_customer}')
6print(f'Costumer ID column: {model.t_customer.c_customer_id}')
Metrics table: 'Metrics'
Sales metric: 'Metrics'[Sales]
Costumer table: 'Customer'
Costumer ID column: 'Customer'[Customer ID]
1# Some attributes of columns
2print(f'The table of the column: {model.t_customer.c_customer_id.table_name}')
3print(f'The qualified name: {model.t_customer.c_customer_id.qualified_name}')
4print(f'The string for fields: {model.t_customer.c_customer_id.field_name}')
5print('\n')
6
7# Some attributes of measure
8print(f'The table of the measure: {model.t_metrics.m_sales.table_name}')
9print(f'The qualified name: {model.t_metrics.m_sales.qualified_name}')
10print(f'The string for fields: {model.t_metrics.m_sales.visual_field_name}')
11print(f'The DAX formula: {model.t_metrics.m_sales.dax}')
The table of the column: Customer
The qualified name: 'Customer'[Customer ID]
The string for fields: Customer.Customer ID
The table of the measure: Metrics
The qualified name: 'Metrics'[Sales]
The string for fields: Metrics.Sales
The DAX formula: SUM(Sales[Sales Amount])
There are functions to summarize the measures, tables, and columns. The return of these functions is a Pandas DataFrame.
1# Resume measures dataframe
2model.resume_measures().head(3).iloc[:,:2]
| Description | Data type | |||
|---|---|---|---|---|
| Table Name | Number of Measures | Measure Name | ||
| Metrics | 1 | Sales | Created with ppr | Double |
1# Resume table and columns dataframe
2model.resume_tables_and_columns().head(3).iloc[:,:2]
| Description | Data type | |||
|---|---|---|---|---|
| Table Name | Number of Columns | Column Name | ||
| SalesTerritory | 5 | RowNumber-2662979B-1795-4F74-8F37-6A1BA8059B61 | Int64 | |
| SalesTerritoryKey | Int64 | |||
| Region | String |
Add a measure in model using add_measure_in_model
I believe one of the greatest benefits of ppr Model is the ability to add measures to the Power BI model using Python.
It can be considered an alternative to Tabular Editor scripts.
In Tabular Editor, for iterations and other complicated actions, you need to know C#.
Here, you can use Python.
To begin, three arguments are necessary to add a measure: the table name, the name, and the expression.
1# First, let's create the measure
2name = 'Sales in Europe'
3expression = '''
4CALCULATE ( [Sales], SalesTerritory[Group] = "Europe" )
5'''
6
7# So, use the function to add into `metrics` table
8model.add_measure_in_model(table_name='Metrics', name=name,
9 expression=expression)
Measure Sales in Europe was added in table Metrics in the model
As it run, the measure is added directly to Power BI:
Besides the name and the expression, format string, display folder and description can be passed to function.
The other important argument of function is if_exists. If measure already exists in the model, a warn is returned. If you are sure that measure can be overwriten, then set if_exists to ‘delete’
Besides the name and the expression, format string, display folder, and description can be passed to the function.
Another important argument of the function is if_exists.
If the measure already exists in the model, a warning is returned. If you are sure that the measure can be overwritten, then set if_exists to ‘delete’.
1# Define the format string, description and folder of the measure
2format_string = '#,0'
3description = 'Sales for Europe region'
4display_folder = r'Sales\Territory'
5
6# Add to model
7model.add_measure_in_model(table_name='Metrics', name=name,
8 expression=expression, format_string=format_string,
9 description=description,
10 display_folder=display_folder, if_exists='delete')
Measure Sales in Europe was added in table Metrics in the model
The folder is created and format is as we set.
With this function, you can add a batch of measures in a loop inside Python or use an external file, like Excel.
To assist with this, the model has a function to export a file called ppr_measure_creator.
1# Use excel_measure creator and gain a file to organize your measures
2model.export_excel_measure_creator()
Excel file ppr_measure_creator.xlsx saved in the folder
An Excel file is saved inside the working directory with the name ppr_measure_creator.xlsx.

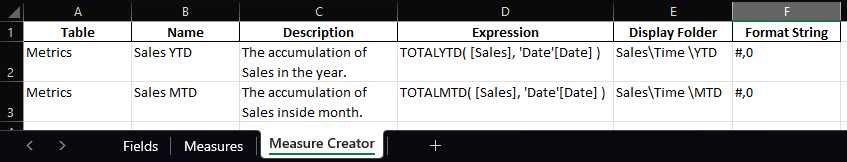

Inside this file, the sheet Measure Creator already contains the main column for measure addition.
The objective is to facilitate the organization of measures and their addition to the model.
Let’s add some rows into the table and demonstrate how to read it with Pandas and iterate over it.
1# Import pandas
2import pandas as pd
3
4# Read the sheet
5df_measure_creator = pd.read_excel('../../example/ppr_measure_creator.xlsx', #to reproduce
6 sheet_name='Measure Creator')
7
8# Iterate rows and use it as arguments of add_measure_in_model
9for idx, row in df_measure_creator.iterrows():
10
11 model.add_measure_in_model(table_name=row['Table'], name=row['Name'],
12 expression=row['Expression'],
13 format_string=row['Format String'],
14 description=row['Description'],
15 display_folder=row['Display Folder'],
16 if_exists='delete')
Measure Sales YTD was added in table Metrics in the model
Measure Sales MTD was added in table Metrics in the model
Be aware not to run the function export_excel_measure_creator again and overwrite the file with measures.
I typically rename this file when it’s created.
